This project is a great way to dive into the world of electronics even if you're just starting out. This article show you how to build a simple doorbell circuit using the NE555 timer on a breadboard. No soldering is required, so you can experiment and learn with ease.
Components:
- NE555 timer IC
- D1 (diode 1N4148)
- Resistors: R1 (1 kΩ), R2 (1 kΩ), R3 (10 kΩ)
- Capacitors: C1 (1 µF), C2 (0.01 µF), C3 (10 µF)
- Speaker (LS1)
- Power source: 9 V
Doorbell Circuit Diagram:
Below is the schematic you’ll follow while assembling your doorbell:
Assembly and Tips:
Simply connect the components on your breadboard as shown in the schematic.
Here are a few tips to help you along:
- First, double-check that all components match the specified values.
- Begin by connecting the power supply without the speaker to ensure the circuit functions correctly.
- Pay close attention to the polarity of the capacitors C1, C3 and diode D1.
- Once you’re confident the circuit works, attach the speaker and test your doorbell.

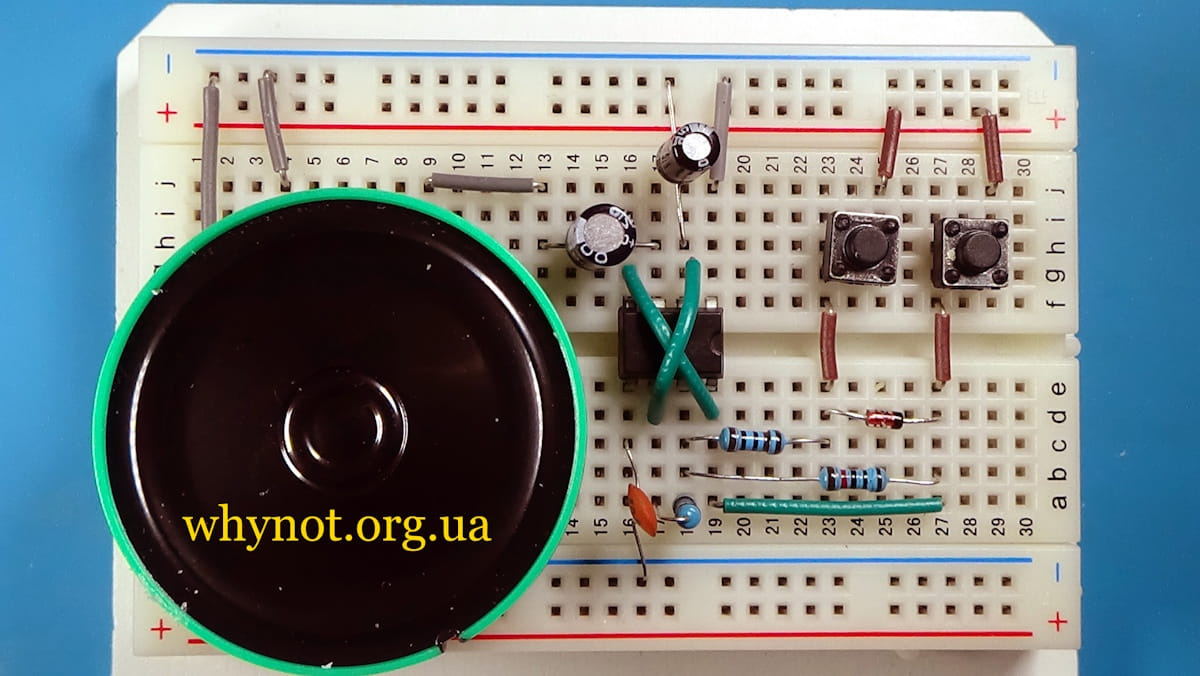

Below is what it will look like after assembly:
Video Tutorial: Watch the video below to see the step-by-step process of assembling and testing the doorbell circuit:
Conclusion: This simple doorbell project is a perfect introduction to the basics of electronics. It gives you hands-on experience with essential components, all without the need for soldering. Enjoy the process, experiment, and let your creativity guide you as you master the fundamentals of DIY electronics!
